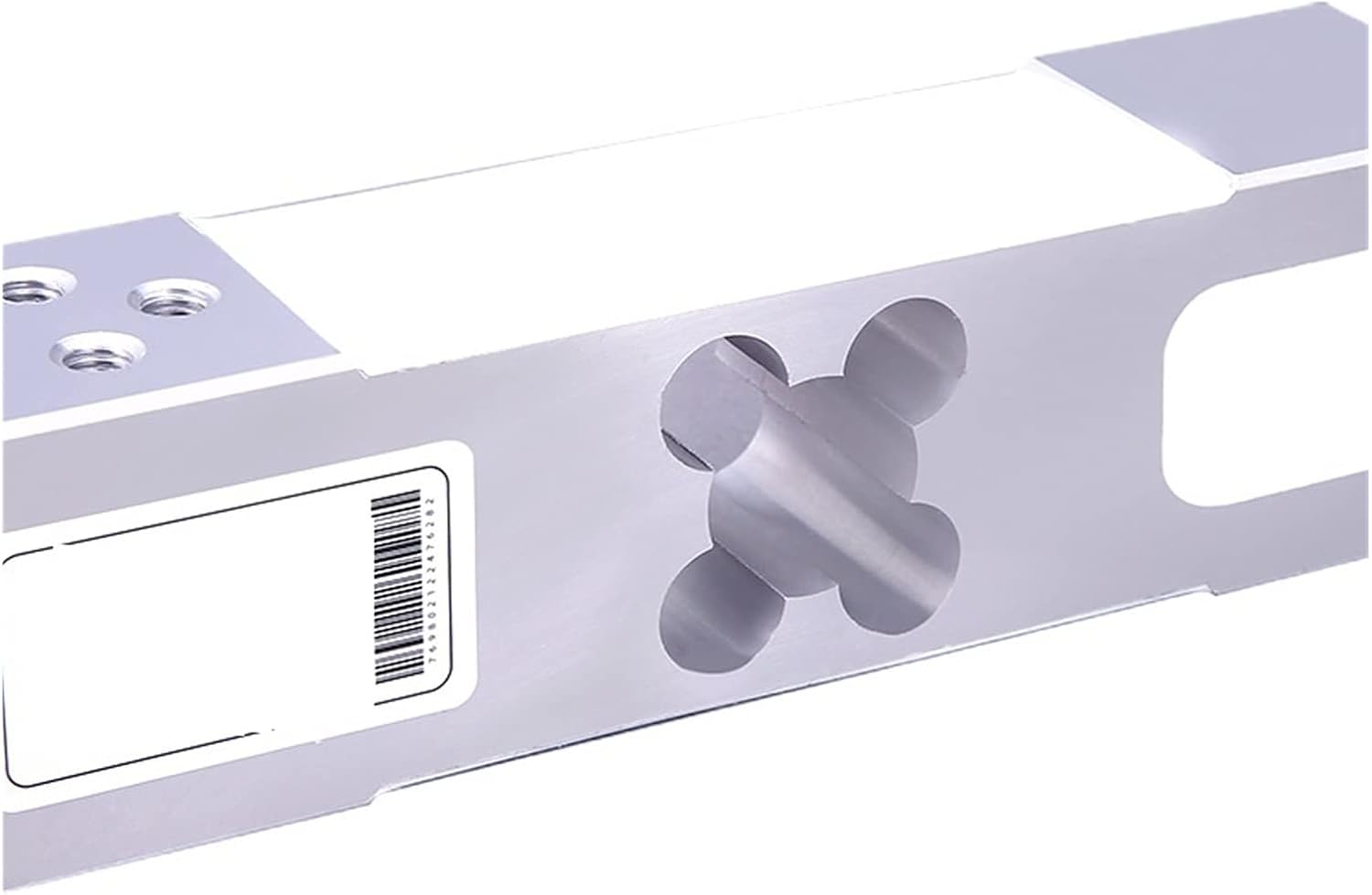

Load Cells, PSD-X3 Shear Beam Aluminum Alloy Material Compression Load Cell Measuring Weight Sensor Electronic Platform Scale 100-350KG(100KG) (Silver 200KG)

Specifications: Capacity 100-350kg Zero Balance ±1%F.S Rated output 2.0±0.004mv/v Input resistance 400±10 Accuracy Class C2 Output resistance 350±3 Non-linearity 0.02%F.S Safe overload 150%F.S Hysteresis 0.03%F.S Ultimate overload 300%F.S Creep in 30 minutes 0.02%F.S Excitation voltage 10V AC/DC Temperature effect span 0.015%F.S/10 Max excitation voltage 15V AC/DC Temperature effect zero 0.02%F.S/10 Insulation Resistance 500M Compensated temperature -10~+40 Environmental protection IP67 Operating temperature -30~+65 Material Aluminium Alloy

• -Shear beam weighing load cell, made of aluminum alloy, colorless anodizing, adhesive seal, protective grade lp65.Suitable for small scale electronic scales such as electronic computing scales,measurement scale,platform scale.
• -Oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.
• -Precise and stable. Easy installation.
• -Suitable for mixing station, batching machine, asphalt station, etc.
• -Safe and anti-explosive product, can be used in bad environment and hazardous areas
